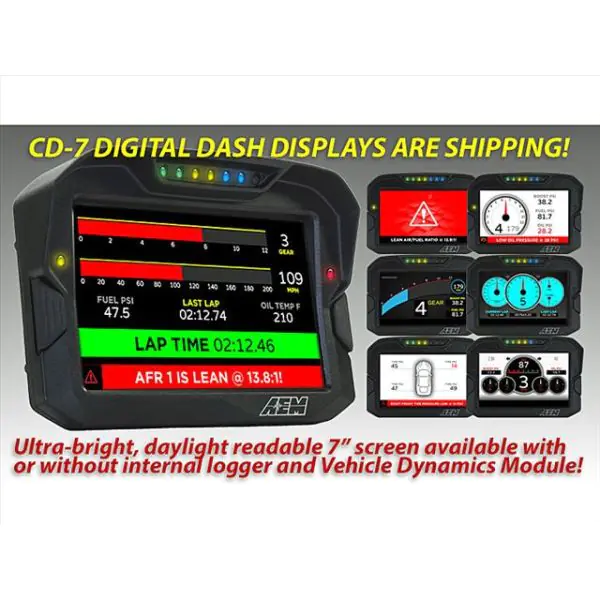

AEM CD-7 Digital Dash Displays

AEM CD-7 Digital Dash Displays

-Full color 7” screen with 800×480 resolution
-1000cd/m2 brightness and anti-glare filter for readability in all conditions including direct sunlight
-IP66 water resistance allows for operation in boats and motorcycles without worry
-Accepts channels from two separate user programmable CAN bus connections – works with AEMnet enabled devices and 3rd party devices side by side
-Available with or without 200Mb internal logging (up to 100Hz/channel)
-Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
-Dedicated Alarm page quickly identifies problems (user defined)
-Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
-Use included page templates and input your channels and text, or create your own custom page templates
-Free DashDesign Graphics Editor software
-Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
-Two programmable LEDs above toggle buttons on sides of housing
-Available as package with VDM to add GPS for track mapping & lap times, accelerometer for longitudinal, lateral and vertical G-loads and gyrometer for roll, pitch and yaw
-Odometer function
-Over 200 supplied fully programmable warning icons, and you can add your own
-Headlight-in’ connection dims the dash and LEDs during night operation
-Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
-User supplied graphics can be changed based on channel values (up to the full screen size)
-Convert CAN bus channel values to user-defined text
