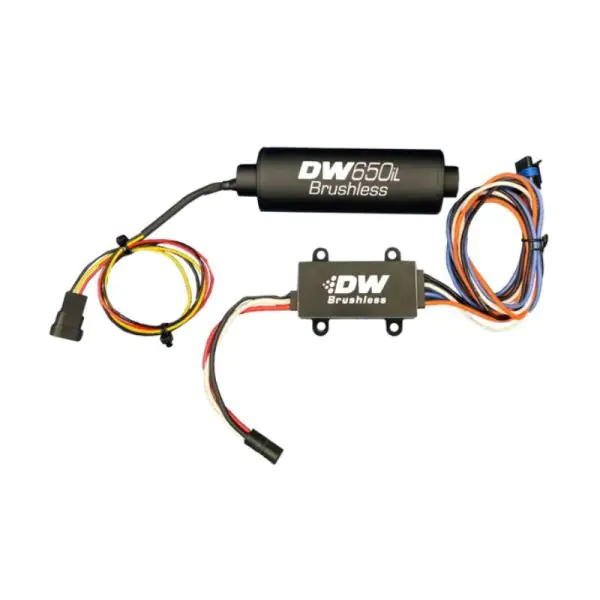

Deatschwerks DW650iL 650LPH Brushless External Fuel Pump with PWM controller – 9-650-C103

Deatschwerks DW650iL 650LPH Brushless External Fuel Pump with PWM Controller – 9-650-C103

The DW650iL brings brushless technology to DW’s line of in-line fuel pumps. Brushless technology reduces friction and heat, increases efficiency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow.

9-650-C103 w- PWM Controller allows your DW650iL Brushless to be full controller by your existing OE or aftermarket fuel pump control module’s PWM signal.

Innovative Quality:
• 650LPH at 40psi 13.8v
• -8an Inlet and Outlet
• Compatible with all fuels including methanol and E100
• No Brushes + No Commutator = Ultimate Durability

Specs:
• Weight: 22oz (622grams)
• External Material: Hard Anodized Aluminum
• Inlet Fitting: -8 AN ORB
• Outlet Fitting -8 AN ORB
• PRV Activation: NA
• Impeller Design: Positive Displacement Screw
• Connector Terminal: Pre-Terminated Connector
• Min Voltage Input: 8 Volts
• Max Voltage Input: 26 Volts
• Current Draw @ 40 PSI: 7.6 Amps (13.5v)

Notes:
*This pump does not have an internal check valve
