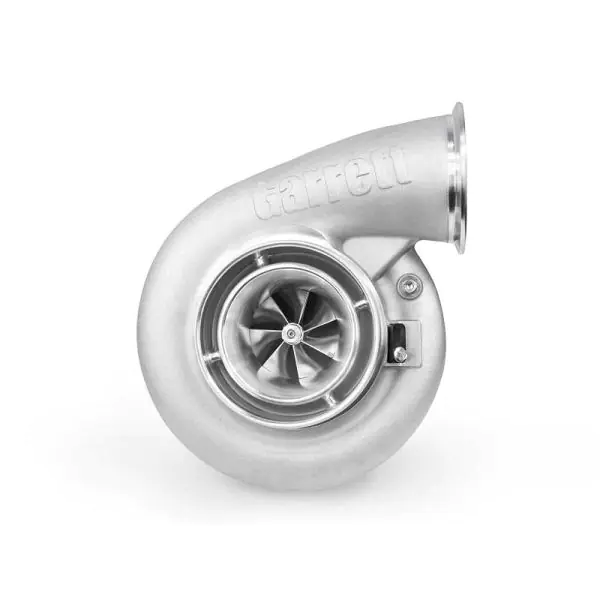

G-XRace GXR40-64 Turbo (64.9mm) – 1150HP

G-XRace Garrett 64.9mm GXR40-64, Ball Bearing Turbocharger, 1150HP Turbo, XBoost Technology, 934173-5005S, T4, Divided, V-Band / V-Band

*Interchangable with your current G40 G Series turbo. Buy only the Supercore and drop it in.

G-XRace GXR40-64 Features:
• XBoost Technology increases power and performance
• +23% compressor flow (GXR40-64 compared to G40-900)
• Enhanced pressure ratio capability and higher boost pressure
• Increased efficiency at high flow rates
• Lower intake temperature
• Lightweight aluminum backplate
• Fully machined flange-style speed sensor port for easy sensor installation and monitoring turbo speed
• Utilizes the same twin-scroll T4 and V-Band turbine housings as G-Series to enable an easy upgrade

Engine Characteristics
Min HP: 500
Max HP: 1150
Min Displacement: 2.0L
Max Displacement: 6.0L

Compressor Wheel Specs
Compressor Exducer (mm): 88
Compressor Wheel Material: Forged Fully Machined
Compressor A/R: .85
Compressor Trim: 53

Turbine Wheel Specs
Turbine Inducer (mm): 77
Turbine Exducer (mm): 70
Turbine Trim: 84
Turbine Wheel Material: Inconel

G-XRace GXR40-64 Turbocharger Info
Frame Size: 40
Rotation: Standard
Cooling: Oil & Water Cooled
Wastegate: External
Bearing: Ceramic Dual Ball Bearing
