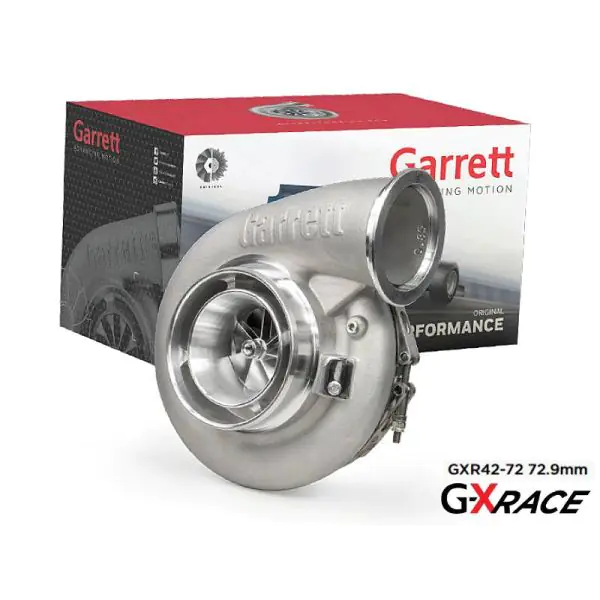

G-XRace GXR42-72 Turbo (72.9mm) – 1450HP

G-XRace Garrett 72.9mm GXR42-72, Ball Bearing Turbocharger, 1450HP Turbo, XBoost Technology, 934173-5002S, T4, Divided, V-Band / V-Band

*Interchangable with your current G42 G Series turbo. Buy only the Supercore and drop it in.

G-XRace GXR42-72 Features:
• XBoost Technology increases power and performance
• Enhanced pressure ratio capability and higher boost pressure
• Increased efficiency at high flow rates
• Lower intake temperature
• 72.9mm compressor inducer | 102mm compressor exducer
• For use in drag racing classes with compressor wheel inducer limits 72.9. Please verify class rules before purchasing
• Lightweight aluminum backplate
• Twin-scroll T4 and V-band turbine inlet flanges available to meet the needs of racers with different engines and manifold designs

Applicable Garrett GXR42 Part Numbers:
– G-XRace GXR42-72 72.9mm Supercore – 934173-5002S
– G-XRace GXR42-72 T4, Divided, 1.01 A/R – 757707-0014
– G-XRace GXR42-72 T4, Divided, 1.15 A/R – 757707-0015
– G-XRace GXR42-72 T4, Divided, 1.28 A/R – 757707-0016
– G-XRace GXR42-72 V-Band Inlet / V-Band Outlet, 1.01 A/R – 757707-0011
– G-XRace GXR42-72 V-Band Inlet / V-Band Outlet, 1.15 A/R – 757707-0012
– G-XRace GXR42-72 V-Band Inlet / V-Band Outlet, 1.28 A/R – 757707-0013

Engine Characteristics
Min HP: 700
Max HP: 1450
Min Displacement: 2.0L
Max Displacement: 7.0L

Compressor Wheel Specs
Compressor Exducer (mm): 102
Compressor Wheel Material: Forged Fully Machined
Compressor A/R: .85
Compressor Trim: 51

Turbine Wheel Specs
Turbine Inducer (mm): 82
Turbine Exducer (mm): 75
Turbine Trim: 84
Turbine Wheel Material: Inconel

G-XRace GXR42-72 Turbocharger Info
Frame Size: 42
Rotation: Standard
Cooling: Oil & Water Cooled
Wastegate: External
Bearing: Ceramic Dual Ball Bearing
