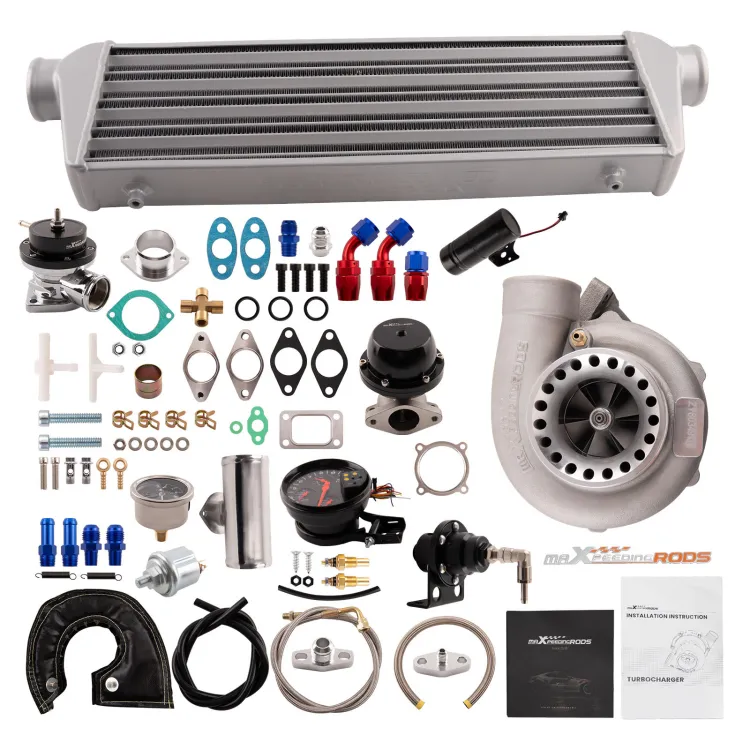

Universal Turbo Kit Perfect For 2.5-6.0L engine
This Kit Will be able to add 400+HP at 7.5-14.5 PSI.
(You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)
1x for GT35 Turbo compatible for charger
Exhaust Inlet (Turbo Manifold) Flange: T3
FlangeExhaust Outlet (pipe) Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Bearing Type: Floating Bearing
Cooling Type: Water + Oil
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)
Wastegate：External Wastegate
Oil feed/inlet: M10*7/16-24
Oil drian/outlet: 2*M8*1.25
water inlet/outlet: M14* 1.5
Maximum PSI：22
Turbocompatible for charger Overall size: 230*180*240
1x intercooler
Overall Size 27” x 7” x 2.5” inch.
core size: 21*7*2.5
Inlet size is 2.5 inch.
1 x Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5″ Inch Type S/Rs Flange Pipe. 25PSi Boost! Can hold up to 1000+ HP.
1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit
1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbo compatible for charger to the oil pan.
Material: Stainless Steel Braided
1x Tachometer
1 X BOV pipe: can install anywhere suitable
1x 5” 4 in 1 Tachometer:
Water Temp Unit Type: Celsius
Water Temp Display Range: 40~120 Celsius
Oil Temp Unit type: Celsius
Oil Temp Display Range: 50~150 Celsius
Oil Pressure Unit Type: Bar
Oil Pressure Display Range: 0~7 Bar
Thread Size of Sensors: 1/8NPT
1x Heat shield branket
Titanium and Carbon Fiber high temperature wrap: 2500°F max
