Universal Turbo Kits Perfect For 1.5L-3.0L engine Turbocharger Kit

Universal Turbo Kit Perfect for 1.5L-3.0L engine, 4/6 cylinder
This Kit Will be able to add 350+HP at 7.5-14.5 PSI.
(You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)
*Notice: Please confirm that your vehicle displacement is 1.5L-3L before purchasing. Otherwise, if you buy the wrong one, you will not be able to use it normally.

Specification

Turbine Side:
Exhaust Inlet Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet pipe Flange: 5 bolt Flange
Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Compressor Side:
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Compressor Inlet Diameter: 72mm(2.8″”)
Compressor Outlet Diameter: 53mm（2″”）

Bearing Type: Wet Float Bearing
Cooling Type:Oil Cooling
Thrust Bearing:270 degree
Horsepower:Up to 400HP
Oil Inlet: M12*1.25& 2*M8*1.25
Oil Outlet:2*M8*1.25
Maximum Oil Pressure: 1.31 Bar
Kit Spring Rate: 14.5 PSI
Turbo Type:Individual
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above

Other specification in the kit :
*1 x Intercooler: Size 27” x 7” x 2.5” inch. Inlet size is 2.5 inch.
Support up to 350 hp for this small intercooler size – tube and fin style .
Intercooler core size: 21*7*2.5
*1 x Universal turbo intercooler piping kit including:
2 x Straight Aluminum Pipe
2 x 45°Aluminum Pipe
2 x 75°Aluminum Pipe
2 x 90°Aluminum Pipe
6 x 2.5″” Straight Silicon Hose (Blue)
2 x 2.5″” 90 Degree Hose (Blue)
16 x 2.5″” Stainless Steel T-Clamp
*1 x Type-S Blow Off Valve: 2.5″” Inch Type S/Rs Flange Pipe. 25PSi Boost!
*1 x BOV pipe: can install anywhere suitable
*1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit
*1 x Turbo Boost Gauge: 2″” (52mm) Turbo Boost Meter Gauge.
*1 x Turbo Boost Controller:
*1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo.
*1x 5 Bolt pipe: 2.5″” t3/t4 5-bolt stainless steel TIG welded pipe. pipe length: 13“
Package Size:94x 46 x 45 cm
Package Weight: 24600g

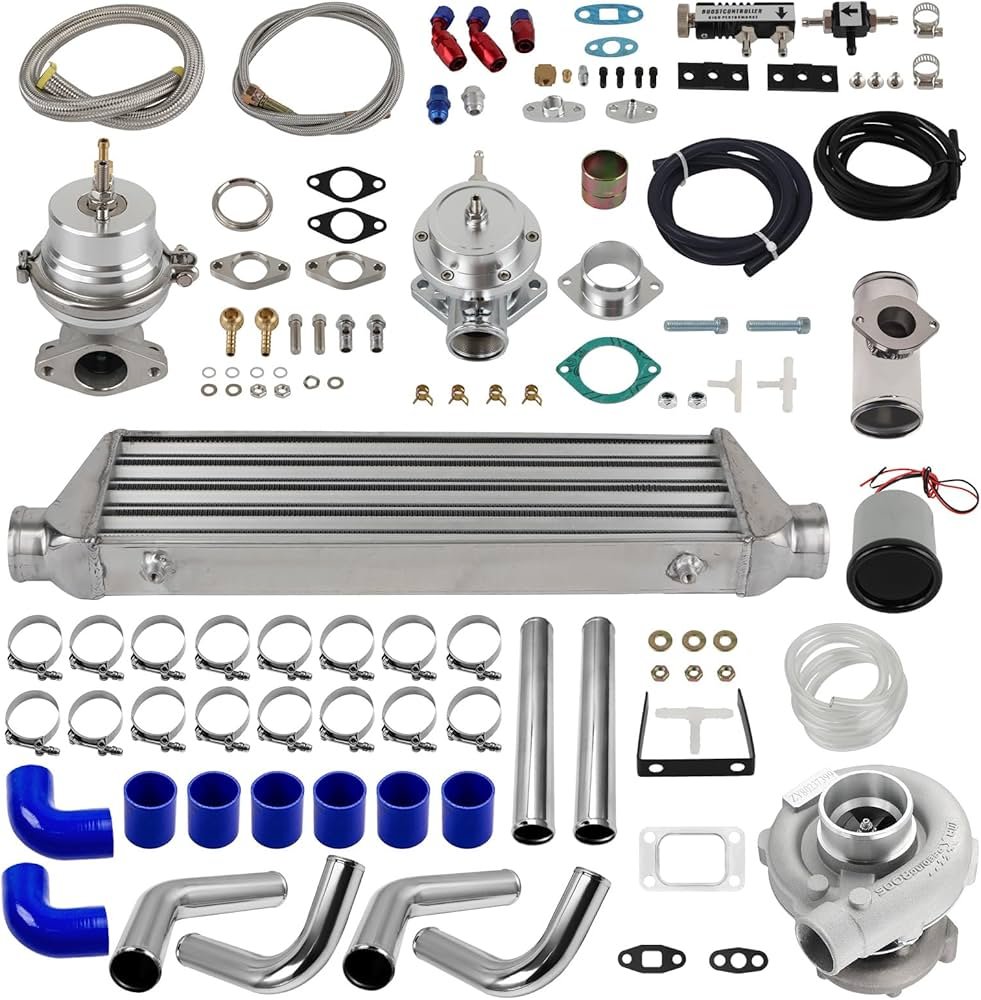

Package Include

1x Turbocharger
1x Oil Feed / Return Line
1x 35/38mm Wastegate (the color will be shipped randomly(Random Color)
1x Turbo Intercooler
1x Type-S Blow Off Valve(Random Color)
1x BOV Adapter/pipe
(You will get exactly as shown in the picture)
